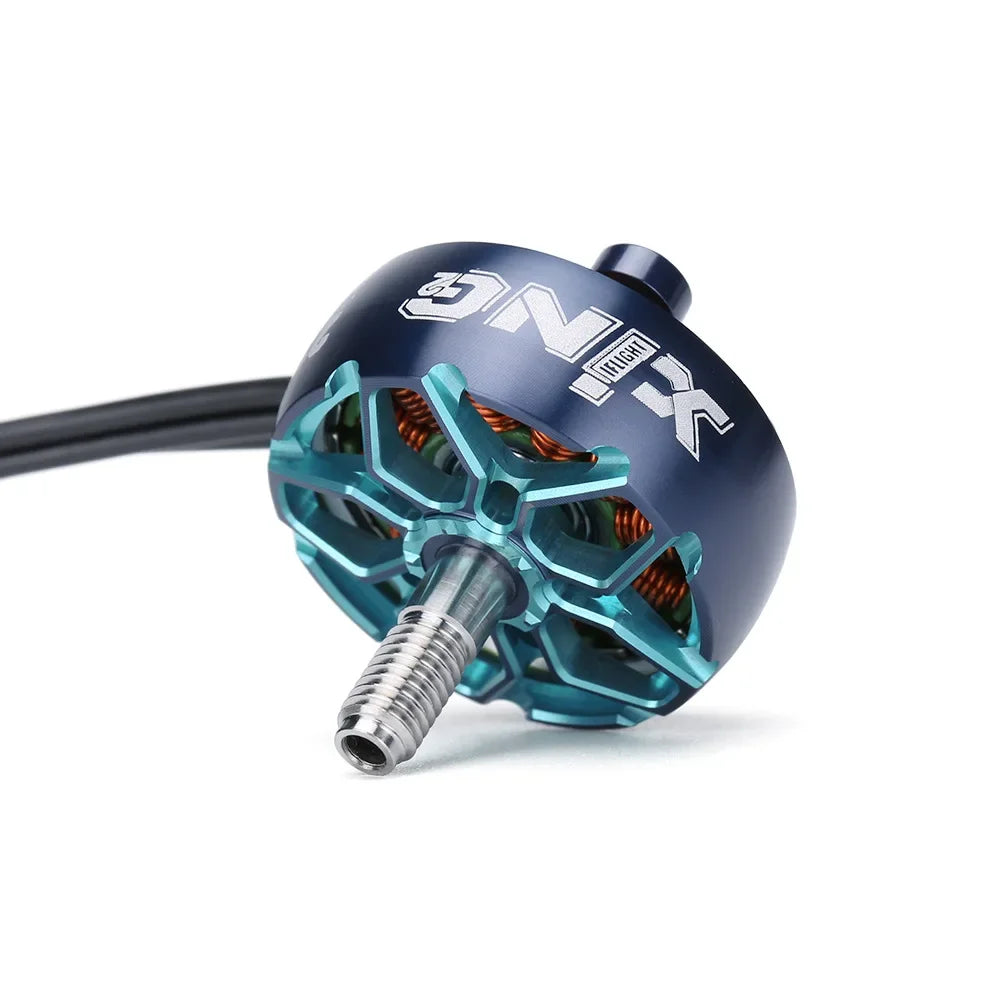

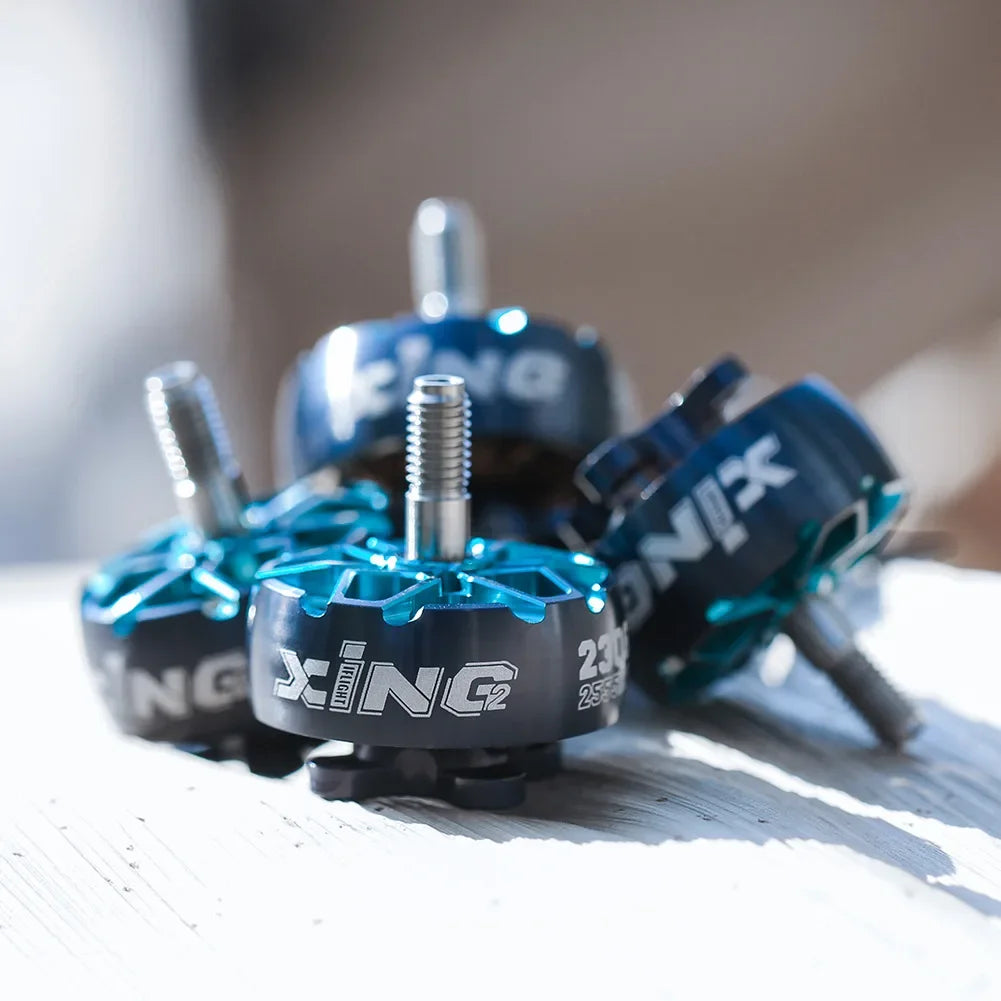

iFlight XING2 Brushless Motors – 2207 & 2306 Series (Set of 4)

Take your FPV build to the next level with the XING2 series motors from iFlight — engineered for performance, durability, and control. Designed for freestyle and racing pilots who demand reliability in every flight.

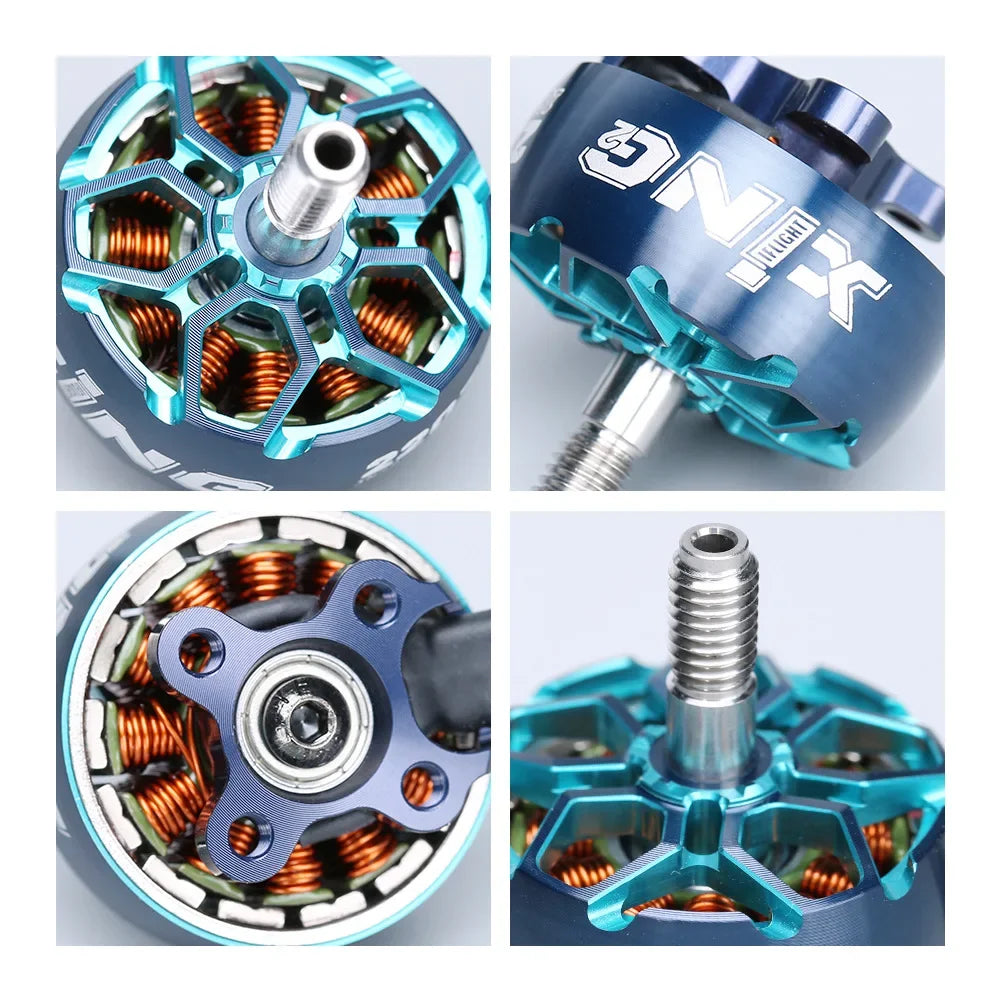

Features:

• 5mm titanium alloy shaft – ultra-strong and crash-resistant

• Precision 7075 aluminum bell – built to survive hard hits

• Smooth-running NSK 9x4x4 bearings – reliable and long-lasting

• Center-slotted N52H curved magnets – powerful and efficient

• XING O-ring bearing gap protection – keeps debris out, prolongs lifespan

• Motor wire protection – reduces wire fatigue and increases durability

• Dynamically balanced – minimizes vibrations for smooth operation

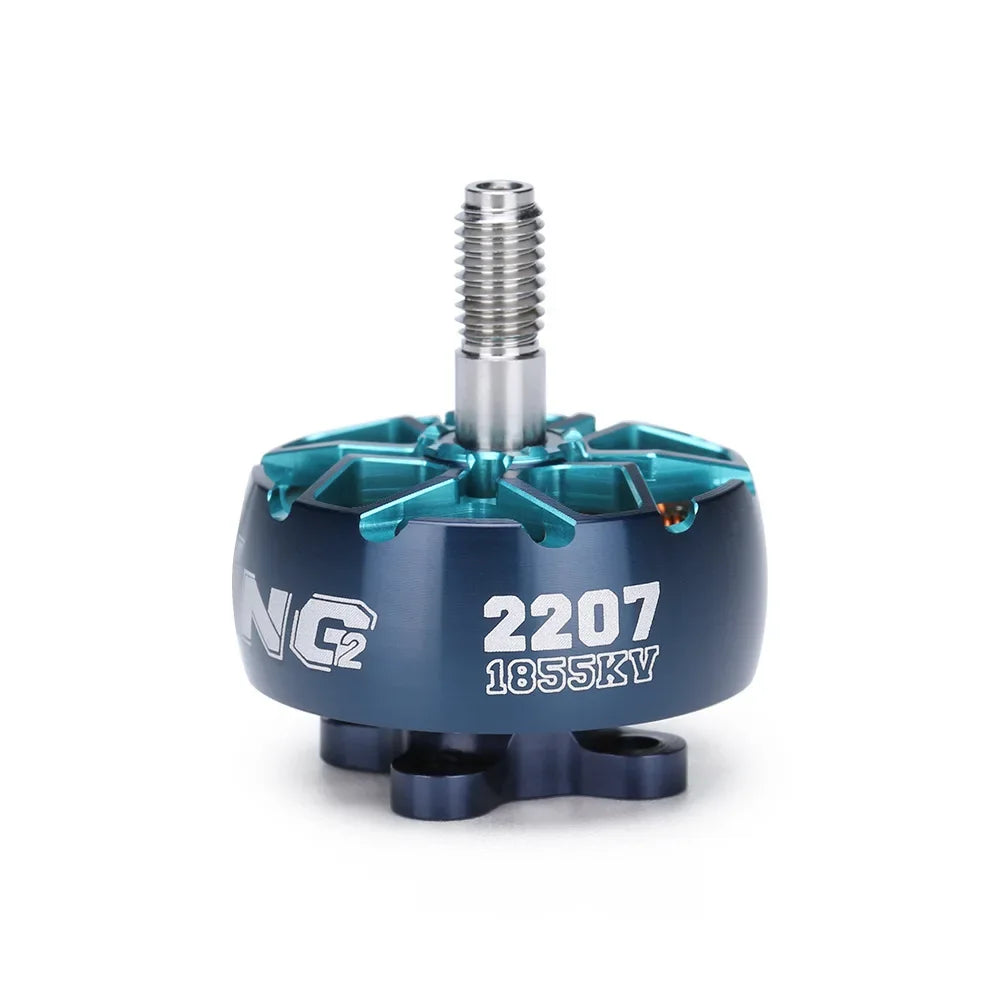

Specifications – XING2 2207:

• KV Options: 1855KV / 2755KV

• Input Voltage: 4S / 6S LiPo

• Configuration: 12N14P

• Stator Size: 22mm x 7mm

• Shaft: 5mm Titanium Alloy

• Weight: 31.6g (short wire)

• Wires: 20AWG, 160mm

• Mounting: 16x16mm

• Thread: CW Screw Thread

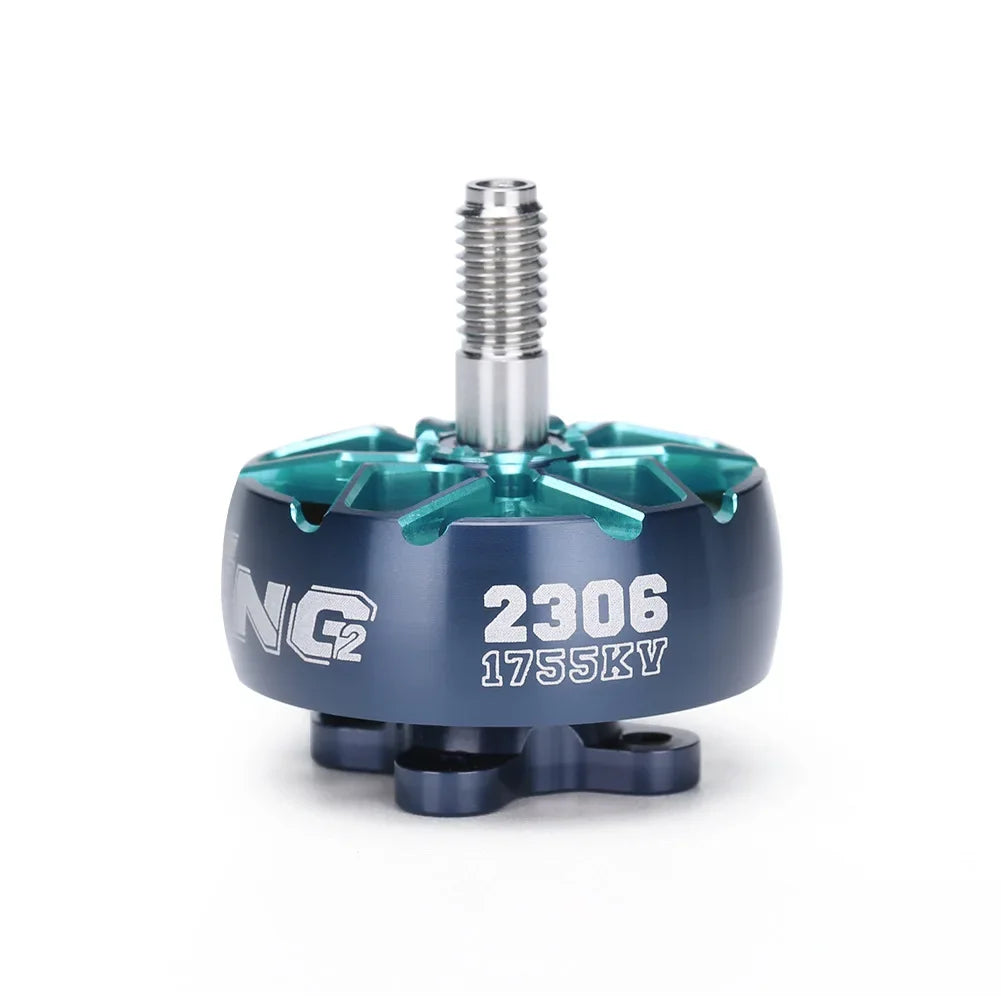

Specifications – XING2 2306:

• KV Options: 1755KV / 2555KV

• Input Voltage: 4S / 6S LiPo

• Configuration: 12N14P

• Stator Size: 23mm x 6mm

• Shaft: 5mm Titanium Alloy

• Weight: 31.6g (short wire)

• Wires: 20AWG, 160mm

• Mounting: 16x16mm

• Thread: CW Screw Thread

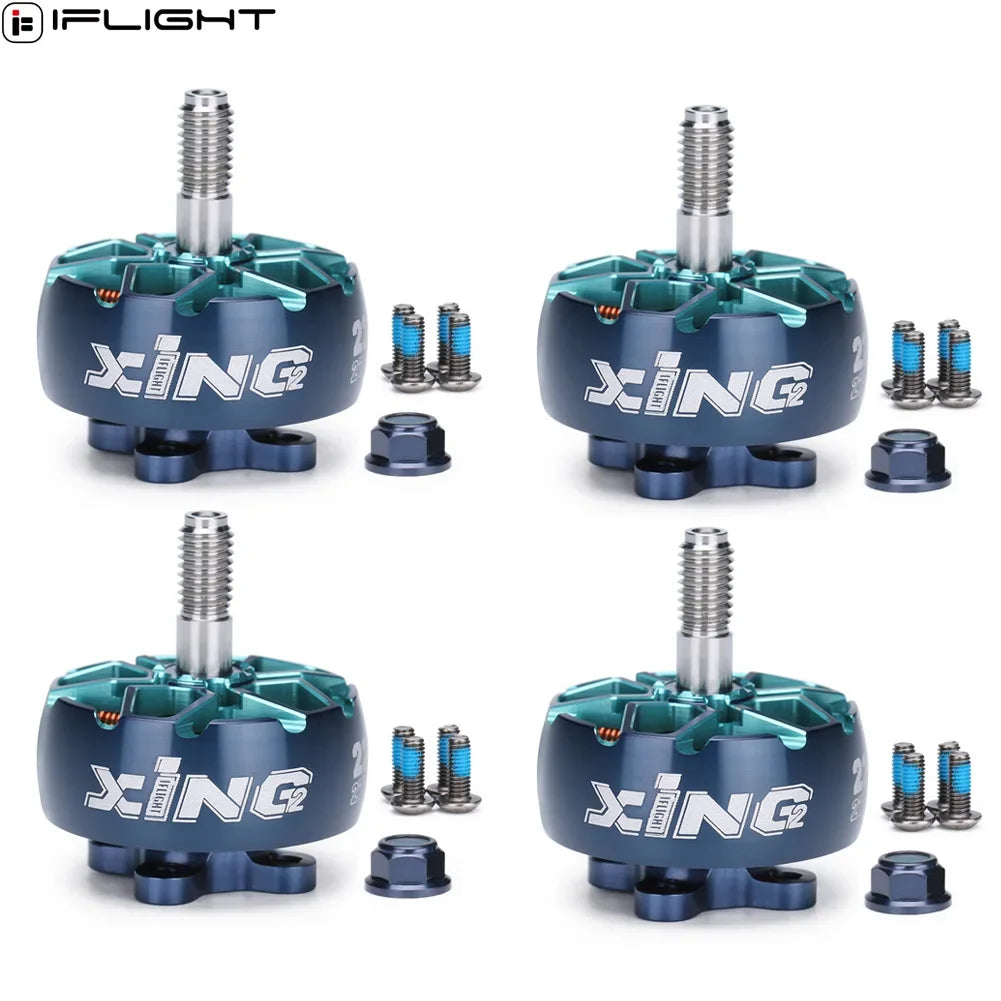

What’s in the box:
4x iFlight XING2 Motors (select model & KV)
